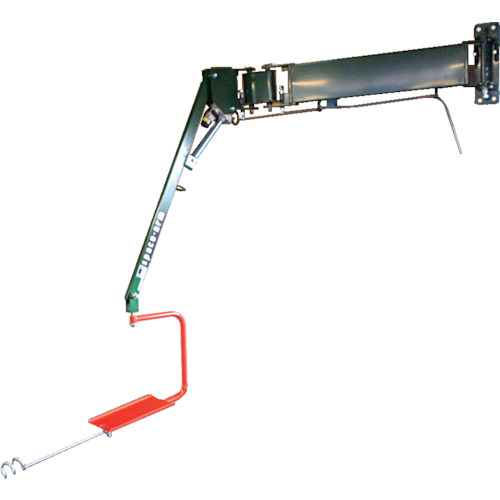

- The introduction of Space Arm dramatically reduces damage to cables and hoses.
- The working area is expanded with 3D arm movement.
- It can be folded for storage.
- The wire feeder can be lifted and lowered to facilitate wire replacement.
- The torch is easy to move, improving work efficiency.
- The arm uses a highly rigid box structure, making it a lightweight and robust design.
- Improves efficiency and safety at welding work sites.
Specifications in detail
Total length: 3100mm
Mounting height: 1700-2500mm
Lift amount: 1100mm
Maximum load: 40kg
AC100V 2-point push button type
Dry cylinder (electric ball screw)
Total length (mm): 3100
Mounting height (mm): 1700-2500
Up/down lift amount (mm): 1100
Maximum load (Kg): 40
HAMACO SPSE-312
