Features
- It takes about 10 minutes to preheat.
- By making the inside of the tunnel double-insulated and installing curtains at the entrances and exits, the finished quality has been greatly improved.
- The airflow direction of the upper heater can be adjusted, allowing for neater finishes on R seals, label seals and cap seals.
- Shrink conditions can be freely adjusted, allowing for stable quality shrinking.
Applications
- For shrink wrapping bottles and plastic containers.
Specifications in detail
Power cord: 2.7m
Plug: Flat plug
Conveyor belt: Approx. 5mm pitch, non-conductive
Operating temperature range: Room temperature (approx. 20-26 degrees)
Power source AC100V 50Hz 60Hz
Power consumption 50Hz 60Hz both 1400W
Power source (V): Single phase 100
Power consumption (W): 1400
Power cord length (m): 2.7
Width (mm): 182
Height (mm): 570
Length (mm): 505
Temperature range (℃): Approx. 130
Furnace interior dimensions (mm): 123 x 350 x 197
Shrinkable size (mm): Cap seal up to Φ85, R seal up to Φ66
Conveyor speed 50Hz (mm/sec): 0-65
Conveyor speed 60Hz (mm/sec): 0-80

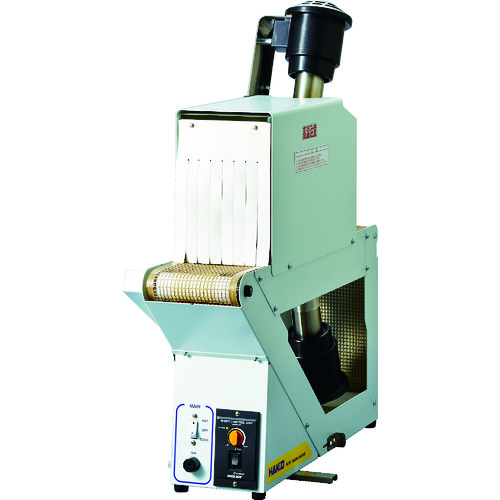

HAKKO FV101-81
