- The robot hand can be easily replaced in a short time.
- Equipped with a unique release mechanism. (Patent No. 4126074)
- It has a built-in fail-safe mechanism.
- Air check valve built-in.
- It has a hybrid structure with the frame made of ultra duralumin and the detachable parts made of steel.
- Air options can be added (20B, 20BI).
Specifications in detail
Air pressure used: 0.5 to 0.7 MPa
Position repeatability: ±0.02mm
Payload capacity: up to 10kg
Thickness when connected: 43mm
Type: Robot side
Installation location: Robot side
Width(mm):87.5
Depth (mm): 42.5
Height (mm): 56.5
Payload capacity (kg): up to 10
Pulling force/pushing force (N): 1350/400
Mounting Connection
Vacuum outlet

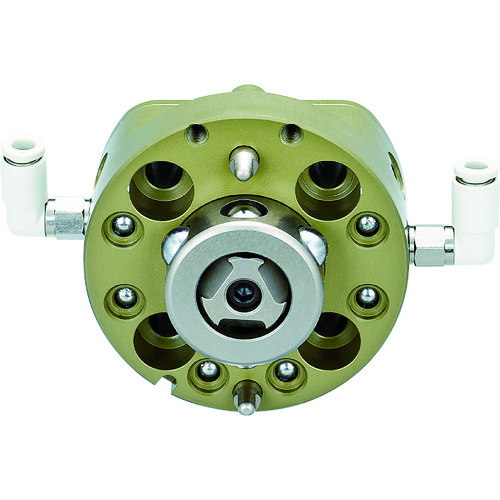

EINZ OX-10B
