| Mã đặt hàng | Dải đo | Độ phân giải | Bezel Ø | Độ chính xác | Lettering | 1revolution | A | B | C | D | F | G | H | I |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||||
| 123410.0030 | 5 | 0.01 | 40 | DIN878 | 0...50...0 | 1 | 27 | 45 | Ø40 | 20 | 15 | 12 | Ø36 | Ø7 |
| 123410.0040 | 5 | 0.01 | 40 | DIN878 | 0...100 | 1 | 27 | 47 | Ø40 | 20 | 14 | 13 | Ø36 | Ø7 |
| 123410.0070 | 5 | 0.01 | 58 | DIN878 | 0...50...0 | 1 | 48 | 60.7 | Ø56.4 | 16.1 | 22.2 | 12.5 | Ø52.0 | Ø8.5 |
| 123410.0074 | 5 | 0.01 | 58 | DIN878 | 0...100 | 1 | 48 | 60.7 | Ø56.4 | 16.1 | 22.2 | 12.5 | Ø52.0 | Ø8.5 |
| 123410.0095 | 10 | 0.01 | 58 | DIN878 | 0...50...0 | 1 | 48 | 68.5 | Ø56.4 | 16.1 | 22.2 | 20.3 | Ø52.0 | Ø8.5 |
| 123410.0100 | 10 | 0.01 | 56 | DIN878 | 0...100 | 1 | 48.5 | 70 | Ø57 | 15 | 20.5 | 20 | Ø51 | Ø8.5 |
| 123410.0200 | 25 | 0.01 | 58 | 25µm | 0...100 | 1 | 61 | 81 | Ø57 | 16 | 20.5 | 32.5 | Ø52 | Ø9.5 |
| 123410.0300 | 50 | 0.01 | 78 | 50µm | 0...100 | 1 | 62 | 132 | Ø88 | 16.5 | 27 | 60 | Ø85 | Ø10 |
| 123410.2010 | 10 | 0.1 | 58 | 100µm | 0...10 | 10 | 48 | 68.5 | Ø56.4 | 16.1 | 22.2 | 20.3 | Ø52.0 | Ø8.5 |
| 123410.2020 | 25 | 0.1 | 58 | 150µm | 0...10 | 10 | 61.2 | 80.9 | Ø56.4 | 16.1 | 22.2 | 32.7 | Ø52.0 | Ø8.7 |

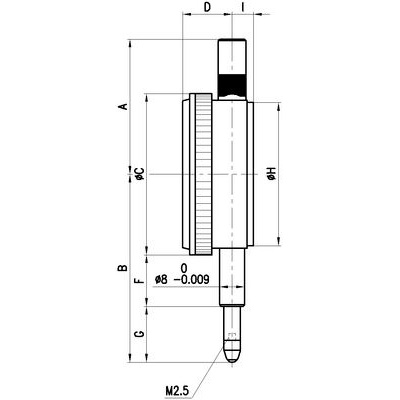

123410 - Dial gauge FUTURO
3-year guarantee - standard version with impact protection.
Features:
Rotating dial with blocking
Adjustable tolerance marks
Clamping shaft Ø 8 mm
Exchangeable measuring insert M2.5
Package contents:
Delivered in transport packaging incl. ISO certifiate.
Appropriate accessories:
Measuring inserts 124008; 124010
| Mã đặt hàng | Dải đo | Độ phân giải | Bezel Ø | Độ chính xác | Lettering | 1revolution | A | B | C | D | F | G | H | I |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||||
| 123410.0030 | 5 | 0.01 | 40 | DIN878 | 0...50...0 | 1 | 27 | 45 | Ø40 | 20 | 15 | 12 | Ø36 | Ø7 |
| 123410.0040 | 5 | 0.01 | 40 | DIN878 | 0...100 | 1 | 27 | 47 | Ø40 | 20 | 14 | 13 | Ø36 | Ø7 |
| 123410.0070 | 5 | 0.01 | 58 | DIN878 | 0...50...0 | 1 | 48 | 60.7 | Ø56.4 | 16.1 | 22.2 | 12.5 | Ø52.0 | Ø8.5 |
| 123410.0074 | 5 | 0.01 | 58 | DIN878 | 0...100 | 1 | 48 | 60.7 | Ø56.4 | 16.1 | 22.2 | 12.5 | Ø52.0 | Ø8.5 |
| 123410.0095 | 10 | 0.01 | 58 | DIN878 | 0...50...0 | 1 | 48 | 68.5 | Ø56.4 | 16.1 | 22.2 | 20.3 | Ø52.0 | Ø8.5 |
| 123410.0100 | 10 | 0.01 | 56 | DIN878 | 0...100 | 1 | 48.5 | 70 | Ø57 | 15 | 20.5 | 20 | Ø51 | Ø8.5 |
| 123410.0200 | 25 | 0.01 | 58 | 25µm | 0...100 | 1 | 61 | 81 | Ø57 | 16 | 20.5 | 32.5 | Ø52 | Ø9.5 |
| 123410.0300 | 50 | 0.01 | 78 | 50µm | 0...100 | 1 | 62 | 132 | Ø88 | 16.5 | 27 | 60 | Ø85 | Ø10 |
| 123410.2010 | 10 | 0.1 | 58 | 100µm | 0...10 | 10 | 48 | 68.5 | Ø56.4 | 16.1 | 22.2 | 20.3 | Ø52.0 | Ø8.5 |
| 123410.2020 | 25 | 0.1 | 58 | 150µm | 0...10 | 10 | 61.2 | 80.9 | Ø56.4 | 16.1 | 22.2 | 32.7 | Ø52.0 | Ø8.7 |
123410 - Dial gauge FUTURO
3-year guarantee - standard version with impact protection.
Features:
Rotating dial with blocking
Adjustable tolerance marks
Clamping shaft Ø 8 mm
Exchangeable measuring insert M2.5
Package contents:
Delivered in transport packaging incl. ISO certifiate.
Appropriate accessories:
Measuring inserts 124008; 124010
