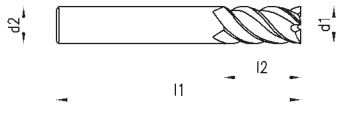

High-performance end mill for machining alloyed and unalloyed steels up to 1600 N/mm2, tool steels and cast materials
| Mã đặt hàng | d1 | l2 | d2 | l1 | Vát góc |
| mm | mm | mm | mm | mm | |
| 225729.0100 | 6 | 13 | 6 | 57 | 0.2 |
| 225729.0200 | 8 | 19 | 8 | 63 | 0.2 |
| 225729.0300 | 10 | 22 | 10 | 72 | 0.3 |
| 225729.0400 | 12 | 26 | 12 | 83 | 0.3 |
| 225729.0500 | 16 | 32 | 16 | 92 | 0.4 |
| 225729.0600 | 20 | 38 | 20 | 104 | 0.5 |
