| Mã đặt hàng | D | d | H | Số Me | ap | Turningplate |
| mm | mm | mm | mm | |||
| 240180.0100 | 40 | 16 | 40 | 4 | 14 | AP..1604... |
| 240180.0200 | 50 | 22 | 40 | 5 | 14 | AP..1604... |
| 240180.0300 | 63 | 27 | 50 | 6 | 14 | AP..1604... |
| 240180.0400 | 80 | 27 | 50 | 7 | 14 | AP..1604... |
| 240180.0500 | 100 | 32 | 50 | 8 | 14 | AP..1604... |

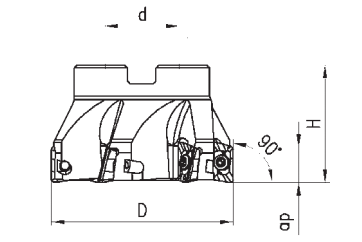

240180 - Square-shoulder milling cutter 90° FUTURO
Extra stable design, with internal cooling.
Indexable inserts: 240170, 240190
Spare parts: 310990
Package content: Screwdriver not included (425270, Torx T15
| Mã đặt hàng | D | d | H | Số Me | ap | Turningplate |
| mm | mm | mm | mm | |||
| 240180.0100 | 40 | 16 | 40 | 4 | 14 | AP..1604... |
| 240180.0200 | 50 | 22 | 40 | 5 | 14 | AP..1604... |
| 240180.0300 | 63 | 27 | 50 | 6 | 14 | AP..1604... |
| 240180.0400 | 80 | 27 | 50 | 7 | 14 | AP..1604... |
| 240180.0500 | 100 | 32 | 50 | 8 | 14 | AP..1604... |
240180 - Square-shoulder milling cutter 90° FUTURO
Extra stable design, with internal cooling.
Indexable inserts: 240170, 240190
Spare parts: 310990
Package content: Screwdriver not included (425270, Torx T15
