| Mã đặt hàng | Dc | d1 | X1 | Lc | Số Me | ap | Turning plates |
| mm | mm | mm | mm | mm | |||
| 240000.0100 | 40 | 16 | 40 | 6 | 3 | 6 | SEHT/SEKT1204... |
| 240000.0200 | 50 | 22 | 48 | 6 | 4 | 6 | SEHT/SEKT1204... |
| 240000.0300 | 63 | 22 | 48 | 6 | 5 | 6 | SEHT/SEKT1204... |
| 240000.0400 | 80 | 27 | 50 | 6 | 6 | 6 | SEHT/SEKT1204... |
| 240000.0500 | 100 | 32 | 50 | 6 | 6 | 6 | SEHT/SEKT1204... |
| 240000.0600 | 125 | 40 | 63 | 6 | 7 | 6 | SEHT/SEKT1204... |

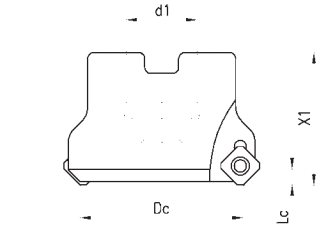

240000 - Face milling cutter 45° FUTURO
Normal separation, strongly positive cutting angle, internal cooling.
Application
Light-cutting face milling cutter, for general purpose use in roughing and finishing, first choice for
medium material removal.
Indexable inserts: 240020, 240040
Spare parts: 310990
| Mã đặt hàng | Dc | d1 | X1 | Lc | Số Me | ap | Turning plates |
| mm | mm | mm | mm | mm | |||
| 240000.0100 | 40 | 16 | 40 | 6 | 3 | 6 | SEHT/SEKT1204... |
| 240000.0200 | 50 | 22 | 48 | 6 | 4 | 6 | SEHT/SEKT1204... |
| 240000.0300 | 63 | 22 | 48 | 6 | 5 | 6 | SEHT/SEKT1204... |
| 240000.0400 | 80 | 27 | 50 | 6 | 6 | 6 | SEHT/SEKT1204... |
| 240000.0500 | 100 | 32 | 50 | 6 | 6 | 6 | SEHT/SEKT1204... |
| 240000.0600 | 125 | 40 | 63 | 6 | 7 | 6 | SEHT/SEKT1204... |
240000 - Face milling cutter 45° FUTURO
Normal separation, strongly positive cutting angle, internal cooling.
Application
Light-cutting face milling cutter, for general purpose use in roughing and finishing, first choice for
medium material removal.
Indexable inserts: 240020, 240040
Spare parts: 310990
