| Mã đặt hàng | D | Da | H | d | Số Me | ap | Turningplate |
| mm | mm | mm | mm | mm | |||
| 239200.0100 | 40 | 52.2 | 40 | 16 | 4 | 4.5 | HPKT06.. |
| 239200.0200 | 50 | 62.2 | 40 | 22 | 5 | 4.5 | HPKT06.. |
| 239200.0300 | 63 | 75.2 | 40 | 22 | 6 | 4.5 | HPKT06.. |
| 239200.0400 | 80 | 92.2 | 50 | 27 | 7 | 4.5 | HPKT06.. |
| 239200.0500 | 100 | 112.2 | 50 | 32 | 9 | 4.5 | HPKT06.. |

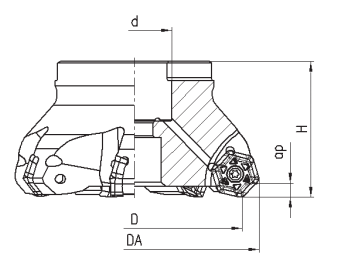

239200 - Face milling cutter 45° FUTURO
Unequally divided face milling cutter 45° nickel-plated with internal cooling, 6 effective cutting
edges and positive indexable inserts. Suitable for cutting depths up to 4.5 mm.
Indexable inserts: 239210
Spare parts: 239300
| Mã đặt hàng | D | Da | H | d | Số Me | ap | Turningplate |
| mm | mm | mm | mm | mm | |||
| 239200.0100 | 40 | 52.2 | 40 | 16 | 4 | 4.5 | HPKT06.. |
| 239200.0200 | 50 | 62.2 | 40 | 22 | 5 | 4.5 | HPKT06.. |
| 239200.0300 | 63 | 75.2 | 40 | 22 | 6 | 4.5 | HPKT06.. |
| 239200.0400 | 80 | 92.2 | 50 | 27 | 7 | 4.5 | HPKT06.. |
| 239200.0500 | 100 | 112.2 | 50 | 32 | 9 | 4.5 | HPKT06.. |
239200 - Face milling cutter 45° FUTURO
Unequally divided face milling cutter 45° nickel-plated with internal cooling, 6 effective cutting
edges and positive indexable inserts. Suitable for cutting depths up to 4.5 mm.
Indexable inserts: 239210
Spare parts: 239300
