| Mã đặt hàng | D | Da | H | d | Số Me | ap | Turning plate |
| mm | mm | mm | mm | mm | |||
| 239100.0100 | 40 | 55 | 45 | 16 | 4 | 6.5 | SOKU15... |
| 239100.0200 | 50 | 65 | 45 | 22 | 4 | 6.5 | SOKU15... |
| 239100.0300 | 63 | 78 | 45 | 22 | 5 | 6.5 | SOKU15... |
| 239100.0400 | 80 | 95 | 50 | 27 | 6 | 6.5 | SOKU15... |
| 239100.0500 | 100 | 115 | 50 | 32 | 7 | 6.5 | SOKU15... |
| 239100.0600 | 125 | 140 | 63 | 40 | 8 | 6.5 | SOKU15.. |

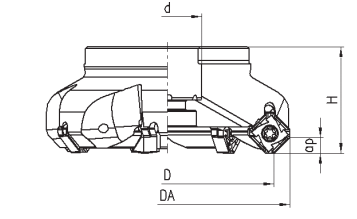

Face mill 45° nickel-plated with internal coolingand 8 effective cutting edges and rectangular,
double-sided, positive indexable inserts.
Application
Face milling and roughing
Indexable inserts: 239110
Spare parts: 239300
| Mã đặt hàng | D | Da | H | d | Số Me | ap | Turning plate |
| mm | mm | mm | mm | mm | |||
| 239100.0100 | 40 | 55 | 45 | 16 | 4 | 6.5 | SOKU15... |
| 239100.0200 | 50 | 65 | 45 | 22 | 4 | 6.5 | SOKU15... |
| 239100.0300 | 63 | 78 | 45 | 22 | 5 | 6.5 | SOKU15... |
| 239100.0400 | 80 | 95 | 50 | 27 | 6 | 6.5 | SOKU15... |
| 239100.0500 | 100 | 115 | 50 | 32 | 7 | 6.5 | SOKU15... |
| 239100.0600 | 125 | 140 | 63 | 40 | 8 | 6.5 | SOKU15.. |
Face mill 45° nickel-plated with internal coolingand 8 effective cutting edges and rectangular,
double-sided, positive indexable inserts.
Application
Face milling and roughing
Indexable inserts: 239110
Spare parts: 239300
