| Mã đặt hàng | Model | Dải cân lực | Khoảng chia lực | Đầu vặn | Chiều dài | Khối lượng |
| N.m | N.m | inch | mm | kg | ||
| 431101.0100 | 50 3/8 | 10-50 | 0.5 | 3/8'' | 327 | 0.69 |
| 431101.0200 | 50 1/2 | 10-50 | 0.5 | 1/2'' | 327 | 0.69 |
| 431101.0300 | 100 3/8 | 20-100 | 1 | 3/8'' | 367 | 0.76 |
| 431101.0400 | 100 1/2 | 20-100 | 1 | 1/2'' | 367 | 0.76 |
| 431101.0500 | 200 1/2 | 40-200 | 2 | 1/2'' | 466 | 1.04 |

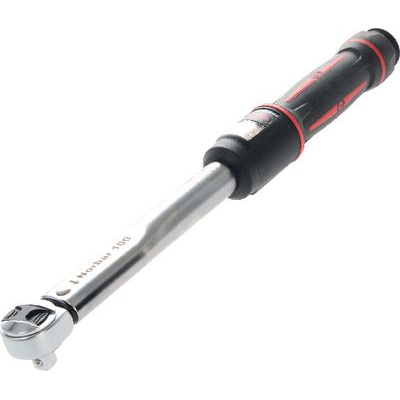

Automatically clicking torque wrench for controlled clockwise fastening,
with compact reversible ratchet with 72 teeth, Model 200 with 48 teeth, +/- 3% accuracy, exceeds
all international standards for torque wrenches.
Every wrench is supplied with a traceable calibration certificate to satisfy the requirements of ISO
9000:2000. Calibration is performed according to DIN EN ISO 6789:2003,
incl. recalibration memory by TimeStrip®(= reg. trademark of TimeStrip UK Ltd.).

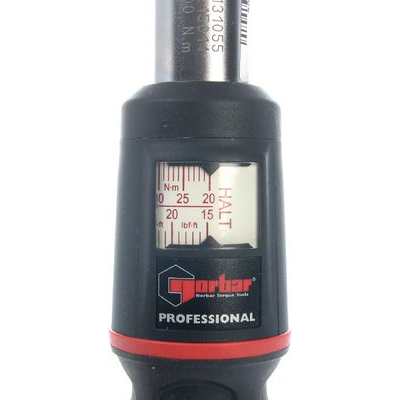

Clearly readable scale with extremely high resolution. Quick and easy adjustment.
Intuitive adjuster lock with visual marking.Ergonomically shaped 2-component handle with
handle centre mark for correct calibration.Handle material and lens resist chemicals in common usage in the automotive, aviation and industrial environments
