Thông tin sản phẩm
Non-contact 2-wire type
1-color display type
Lead wire exit direction: L-shaped type
Lead wire: Oil-resistant vinyl cabtyre cord
Load current: 5 to 20 mA (load voltage: DC10 ~30V)
Protection structure: IEC standard IP67, JIS C0920 (immersion-proof type), oil resistant
Ambient temperature: -10 to 60℃
Lead wire entry: L-shaped
Load voltage (V) : DC10 to 30
Lead wire length (m): 3
Indicator light: Red
Internal voltage drop (V): 4 or less
Leakage current (mA): 1 or less
Applicable Cylinder: Standard type (CAC4/CKV2/CMA2/CMK2/HCM/JSC3/JSC4/JSG/JSK2/JSM2/LCG/LCR/LCW/LCX/MRG2/MRL2/RCC2/RCS2/RRC/SCA2/SCG/SCM/SCP *3/SCS2/SRM3/SSD/SSD2/SSG/STG/STS/STL/STK/UCA2/UCAC2/ULK/Hand/Chuck)

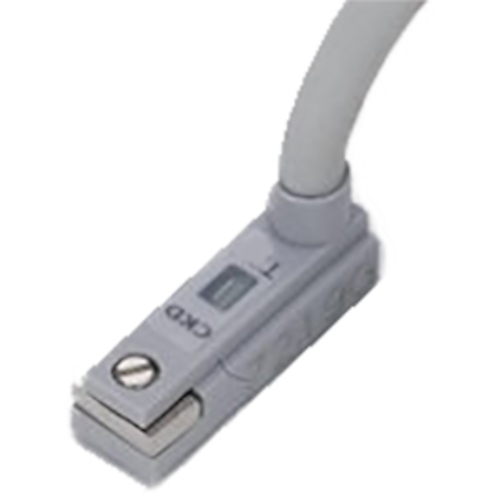

CKD SW-T2V3
