Thông tin sản phẩm
Fluid temperature: -20 to 60°C
Operating pressure: 1.0MPa
Connection joint: Coupling/nipple with residual pressure removal function (series 315)
Coil diameter (mm): 52
Color: Green
Hose inner diameter x outer diameter (mm): 6.5 x 10
Usage range (m): 2
Total length (mm): 740
Coil length (mm): 140
Outer diameter (mm): 10
Inner diameter (mm): 6.5
Total length (m): 2
Maximum operating pressure (MPa): 1.0
Operating temperature range (°C): -20 to 60
Operating fluid: Air

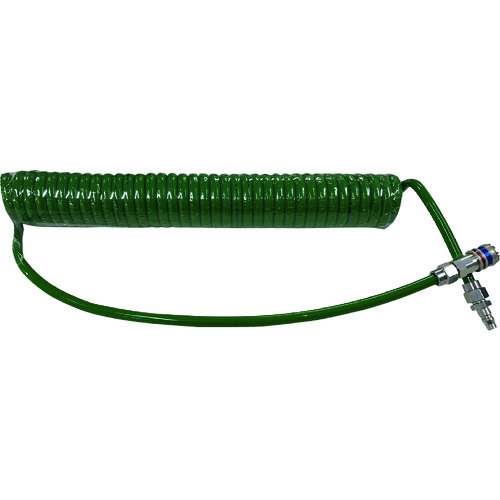

CEJN 19-958-9026
