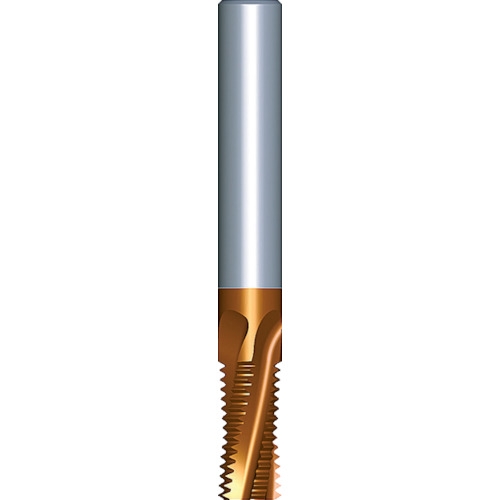

carmex company Việt Nam | NOGA Carmex Solid Carbide Mill Thread For both internal and external diameter threads/BSPT MW3043126

carmex company Việt Nam | NOGA Carmex Solid Carbide Mill Thread For both internal and external diameter threads/BSPT MW3043126

Thông tin sản phẩm

Thread: Tapered pipe thread for both inner and outer diameters (BSPT)
Nominal size: RC1-2
Number of threads: 11
Blade diameter (mm): 16.0
Blade length (mm): 28.9
Total length (mm): 105
Number of blades (pieces): 4
Shank diameter (mm): 16
Surface treatment: Aluminum titanium nitride (TiAlN) multilayer coating (MT7)

carmex company 1616D28 11BSPT MT-7

carmex company Việt Nam | NOGA Carmex Solid Carbide Mill Thread For both internal and external diameter threads/BSPT MW3043126

Thương hiệu: carmex company

Liên hệ

Thread processing can be done in one pass.
Can cut effective threads to the corners of blind holes.
Threads with different diameters and the same pitch can be machined with one tool, regardless of whether they are right-handed or left-handed.
The spiral blade provides a beautiful finish.

Work materials: carbon steel, alloy steel, stainless steel, cast steel, cast iron.
Carbide threading tool.

carmex company 1616D28 11BSPT MT-7
