| Mã đặt hàng | Chiều dài | Profile | Mã đặt hàng | Chiều dài | Profile | Mã đặt hàng | Chiều dài | Profile |
| mm | mm | mm | mm | mm | mm | |||
| 143222.0010 | 80 | 2x5 | 143222.0390 | 100 | 6x19 | 143222.0770 | 150 | 12x15 |
| 143222.0020 | 80 | 2x10 | 143222.0400 | 100 | 6x24 | 143222.0780 | 150 | 12x20 |
| 143222.0030 | 80 | 2x15 | 143222.0410 | 125 | 8x11 | 143222.0790 | 150 | 12x25 |
| 143222.0040 | 80 | 2x20 | 143222.0420 | 125 | 8x16 | 143222.0800 | 150 | 12x30 |
| 143222.0050 | 80 | 3x6 | 143222.0430 | 125 | 8x21 | 143222.0810 | 150 | 12x35 |
| 143222.0060 | 80 | 3x11 | 143222.0440 | 125 | 8x26 | 143222.0820 | 150 | 12x40 |
| 143222.0070 | 80 | 3x16 | 143222.0450 | 125 | 8x31 | 143222.0830 | 150 | 14x17 |
| 143222.0080 | 80 | 3x21 | 143222.0460 | 125 | 8x36 | 143222.0840 | 150 | 14x22 |
| 143222.0090 | 80 | 4x7 | 143222.0470 | 125 | 10x13 | 143222.0850 | 150 | 14x27 |
| 143222.0100 | 80 | 4x12 | 143222.0480 | 125 | 10x18 | 143222.0860 | 150 | 14x32 |
| 143222.0110 | 80 | 4x17 | 143222.0490 | 125 | 10x23 | 143222.0870 | 150 | 14x37 |
| 143222.0120 | 80 | 4x22 | 143222.0500 | 125 | 10x28 | 143222.0880 | 150 | 14x42 |
| 143222.0130 | 80 | 5x8 | 143222.0510 | 125 | 10x33 | 143222.0890 | 200 | 8x11 |
| 143222.0140 | 80 | 5x13 | 143222.0520 | 125 | 10x38 | 143222.0900 | 200 | 8x16 |
| 143222.0150 | 80 | 5x18 | 143222.0530 | 125 | 12x15 | 143222.0910 | 200 | 8x21 |
| 143222.0160 | 80 | 5x23 | 143222.0540 | 125 | 12x20 | 143222.0920 | 200 | 8x26 |
| 143222.0170 | 80 | 6x9 | 143222.0550 | 125 | 12x25 | 143222.0930 | 200 | 8x31 |
| 143222.0180 | 80 | 6x14 | 143222.0560 | 125 | 12x30 | 143222.0940 | 200 | 8x36 |
| 143222.0190 | 80 | 6x19 | 143222.0570 | 125 | 12x35 | 143222.0950 | 200 | 10x13 |
| 143222.0200 | 80 | 6x24 | 143222.0580 | 125 | 12x40 | 143222.0960 | 200 | 10x18 |
| 143222.0210 | 100 | 2x5 | 143222.0590 | 125 | 14x17 | 143222.0970 | 200 | 10x23 |
| 143222.0220 | 100 | 2x10 | 143222.0600 | 125 | 14x22 | 143222.0980 | 200 | 10x28 |
| 143222.0230 | 100 | 2x15 | 143222.0610 | 125 | 14x27 | 143222.0990 | 200 | 10x33 |
| 143222.0240 | 100 | 2x20 | 143222.0620 | 125 | 14x32 | 143222.1000 | 200 | 10x38 |
| 143222.0250 | 100 | 3x6 | 143222.0630 | 125 | 14x37 | 143222.1010 | 200 | 12x15 |
| 143222.0260 | 100 | 3x11 | 143222.0640 | 125 | 14x42 | 143222.1020 | 200 | 12x20 |
| 143222.0270 | 100 | 3x16 | 143222.0650 | 150 | 8x11 | 143222.1030 | 200 | 12x25 |
| 143222.0280 | 100 | 3x21 | 143222.0660 | 150 | 8x16 | 143222.1040 | 200 | 12x30 |
| 143222.0290 | 100 | 4x7 | 143222.0670 | 150 | 8x21 | 143222.1050 | 200 | 12x35 |
| 143222.0300 | 100 | 4x12 | 143222.0680 | 150 | 8x26 | 143222.1060 | 200 | 12x40 |
| 143222.0310 | 100 | 4x17 | 143222.0690 | 150 | 8x31 | 143222.1070 | 200 | 14x17 |
| 143222.0320 | 100 | 4x22 | 143222.0700 | 150 | 10x36 | 143222.1080 | 200 | 14x22 |
| 143222.0330 | 100 | 5x8 | 143222.0710 | 150 | 10x13 | 143222.1090 | 200 | 14x27 |
| 143222.0340 | 100 | 5x13 | 143222.0720 | 150 | 10x18 | 143222.1100 | 200 | 14x32 |
| 143222.0350 | 100 | 5x18 | 143222.0730 | 150 | 10x23 | 143222.1110 | 200 | 14x37 |
| 143222.0360 | 100 | 5x23 | 143222.0740 | 150 | 10x28 | 143222.1120 | 200 | 14x42 |
| 143222.0370 | 100 | 6x9 | 143222.0750 | 150 | 10x33 | |||
| 143222.0380 | 100 | 6x14 | 143222.0760 | 150 | 10x38 |

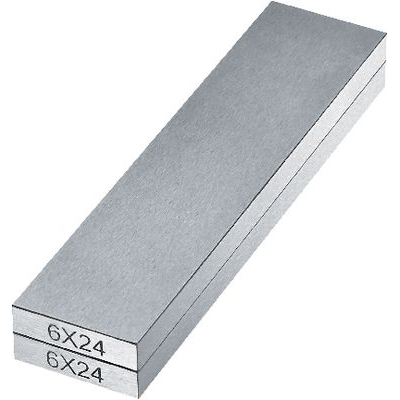

143222 Parallel base pair FUTURO
(Milling blocks)– Hardened steel, for use as supports for workpieces during a wide range of
machining processes. The height tolerance of the parallel pair allows parallel clamping of the workpiece.
Features:
Hardened approx. 58-60HRC
Ground plane-parallel in pairs
Pair height tolerance 0.01 mm
Nominal dimensions to DIN ISO 2768/Part 1 medium
Nominal dimension printed on product face
Package contents:
Delivered in transport packaging.
Wooden base 143240
