| Mã đặt hàng | Chiều dài | Profile | Mã đặt hàng | Chiều dài | Profile |
| mm | mm | mm | mm | ||
| 143172.0100 | 150 | 10 x 14 | 143172.0800 | 150 | 10 x 28 |
| 143172.0200 | 150 | 10 x 16 | 143172.0900 | 150 | 10 x 30 |
| 143172.0300 | 150 | 10 x 18 | 143172.1000 | 150 | 10 x 32 |
| 143172.0400 | 150 | 10 x 20 | 143172.1100 | 150 | 10 x 35 |
| 143172.0500 | 150 | 10 x 22 | 143172.1200 | 150 | 10 x 40 |
| 143172.0600 | 150 | 10 x 24 | 143172.1300 | 150 | 10 x 45 |
| 143172.0700 | 150 | 10 x 26 | 143172.1400 | 150 | 10 x 50 |

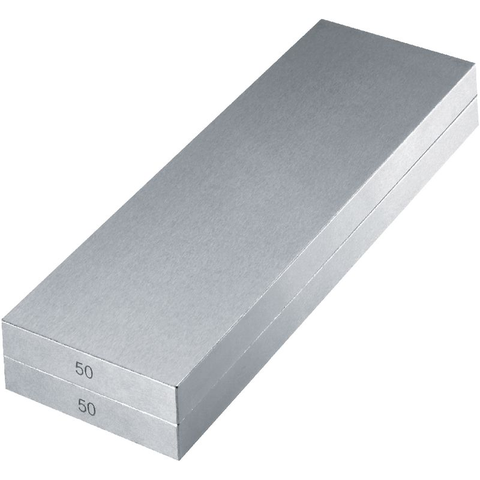

143172 Parallel base pair FUTURO
(Milling blocks)– Hardened steel, for use as supports for workpieces during a wide range of
machining processes. The height tolerance of the parallel pair allows parallel clamping of the workpiece.
Features:
Hardened approx. 58-60HRC
Ground plane-parallel in pairs
Pair height tolerance 0.01 mm
Nominal dimensions to DIN ISO 2768/Part 1 medium
Nominal dimension printed on product face
Package contents:
Delivered in transport packaging
