| Mã đặt hàng | Chiều dài | Mã đặt hàng | Chiều dài | Mã đặt hàng | Chiều dài |
| mm | mm | mm | |||
| 163547.0410 | 0.50 | 163547.1760 | 7.00 | 163547.2030 | 18.50 |
| 163547.1000 | 1.00 | 163547.1770 | 7.50 | 163547.2040 | 19.00 |
| 163547.1010 | 1.0005 | 163547.1790 | 8.00 | 163547.2050 | 19.50 |
| 163547.1060 | 1.005 | 163547.1800 | 8.50 | 163547.2060 | 20.00 |
| 163547.1200 | 1.10 | 163547.1810 | 9.00 | 163547.2080 | 20.50 |
| 163547.1300 | 1.20 | 163547.1820 | 9.50 | 163547.2090 | 21.00 |
| 163547.1400 | 1.30 | 163547.1830 | 10.00 | 163547.2100 | 21.50 |
| 163547.1500 | 1.40 | 163547.1850 | 10.50 | 163547.2110 | 22.00 |
| 163547.1600 | 1.50 | 163547.1860 | 11.00 | 163547.2120 | 22.50 |
| 163547.1610 | 1.60 | 163547.1870 | 11.50 | 163547.2140 | 23.00 |
| 163547.1620 | 1.70 | 163547.1880 | 12.00 | 163547.2150 | 23.50 |
| 163547.1630 | 1.80 | 163547.1890 | 12.50 | 163547.2160 | 24.00 |
| 163547.1640 | 1.90 | 163547.1910 | 13.00 | 163547.2170 | 24.50 |
| 163547.1650 | 2.00 | 163547.1920 | 13.50 | 163547.2180 | 25.00 |
| 163547.1660 | 2.50 | 163547.1930 | 14.00 | 163547.2190 | 30.00 |
| 163547.1670 | 3.00 | 163547.1940 | 14.50 | 163547.2200 | 40.00 |
| 163547.1680 | 3.50 | 163547.1950 | 15.00 | 163547.2210 | 50.00 |
| 163547.1690 | 4.00 | 163547.1960 | 15.50 | 163547.2220 | 60.00 |
| 163547.1700 | 4.50 | 163547.1970 | 16.00 | 163547.2230 | 70.00 |
| 163547.1710 | 5.00 | 163547.1980 | 16.50 | 163547.2240 | 75.00 |
| 163547.1730 | 5.50 | 163547.1990 | 17.00 | 163547.2250 | 80.00 |
| 163547.1740 | 6.00 | 163547.2000 | 17.50 | 163547.2260 | 90.00 |
| 163547.1750 | 6.50 | 163547.2020 | 18.00 | 163547.2270 | 100.00 |

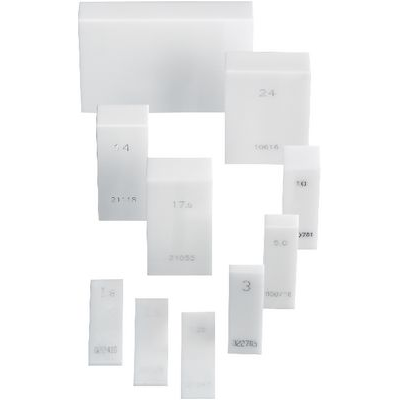

163547 Parallel gauge block FUTURO, ceramic
Tolerance class 0 - DIN EN ISO 3650 - These gauge blocks are used as factory or working standards in calibration labs and climate-controlled testing rooms for setting and calibrating gauges and measuring devices. Ceramic is anti-magnetic, has low thermal conductivity and high
wear resistance compared to steel.
Package contents:
Delivered incl. calibration certificate
