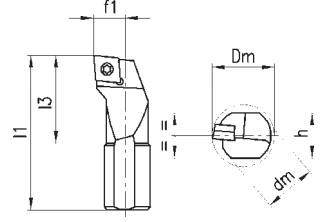

| Mã đặt hàng | Turning plate | Code | dm | Dm min | f1 | h | l1 | l3 |
| mm | mm | mm | mm | mm | mm | |||
| 310350.0100 | 06 | S08K SCLCR06 | 8 | 11 | 5 | 7 | 125 | 16 |
| 310350.0200 | 06 | S10M SCLCR06 | 10 | 13 | 7 | 9 | 150 | 25 |
| 310350.0300 | 06 | A12K SCLCR06 | 12 | 16 | 9 | 11 | 125 | 25 |
| 310350.0400 | 09 | S16R SCLCR09 | 16 | 20 | 11 | 15 | 200 | 30 |
| 310350.0500 | 09 | A20Q SCLCR09 | 20 | 24 | 13 | 18 | 180 | 35 |
| 310350.0600 | 09 | A25R SCLCR09 | 25 | 31 | 17 | 23 | 200 | 40 |

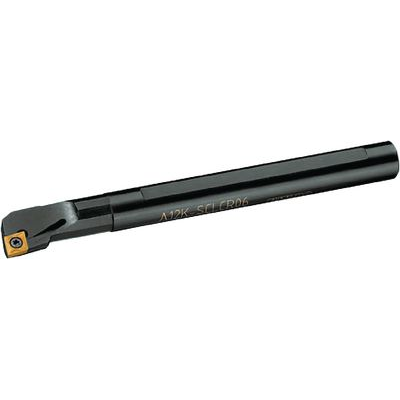

310350 Boring bar SCLCR FUTURO
Angle of entry 95°, screw clamping, steel boring bar, angle of cut 0°, angle of inclination -6° to -15°
Appropriate spare parts:425360 TORX ®screwdriver WIHA
Corresponding inserts:
310740 Indexable insert CCMT FUTURO
310905 Indexable insert CBN FUTURO
316500 Indexable insert FUTURO Type CC.. 7° positive, Single-sided
317200 Indexable insert FUTURO Type CC..
