| Mã đặt hàng | Turning plate | Code | b | f1 | h | h1 | l1 | l3 |
| mm | mm | mm | mm | mm | mm | mm | ||
| 310200.0100 | 06 | SCLCR 1010E06 | 10 | 12 | 10 | 10 | 70 | 10 |
| 310200.0200 | 09 | SCLCR 1212F09 | 12 | 16 | 12 | 12 | 80 | 16 |
| 310200.0300 | 09 | SCLCR 1616H09 | 16 | 20 | 16 | 16 | 100 | 16 |
| 310200.0400 | 09 | SCLCR 2020K09 | 20 | 25 | 20 | 20 | 125 | 16 |
| 310200.0500 | 12 | SCLCR 2020K12 | 20 | 25 | 20 | 20 | 125 | 25 |
| 310200.0600 | 12 | SCLCR 2525M12 | 25 | 32 | 25 | 25 | 150 | 25 |

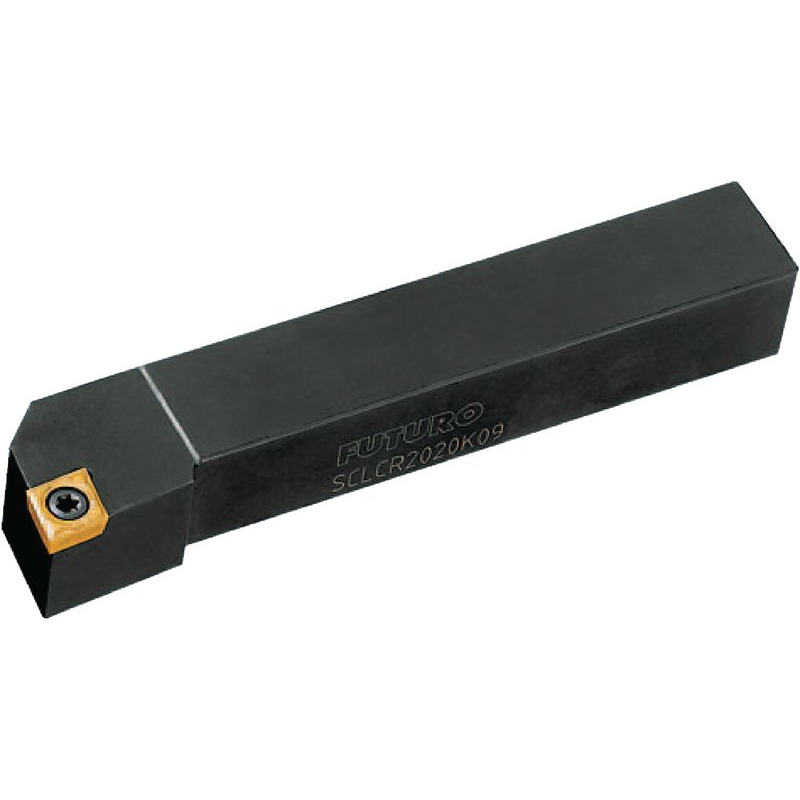

310200 Tool holder SCLCR FUTURO
Angle of entry 95°, screw clamping, angle of cut 0°, angle of inclination 0°
Appropriate spare parts:
425360 TORX® screwdriver WIHA
Corresponding inserts:
310740 Indexable insert CCMT FUTURO
310905 Indexable insert CBN FUTURO
316500 Indexable insert FUTURO Type CC.. 7° positive, Single-sided
317200 Indexable insert FUTURO Type CC.
