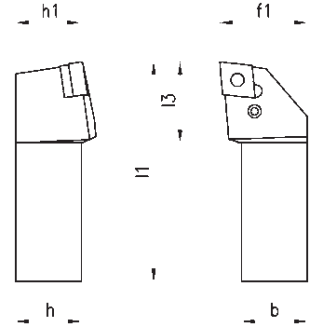

| Mã đặt hàng | Turning plate | Code | b | f1 | h | l1 | l3 |
| mm | mm | mm | mm | mm | mm | ||
| 310000.0100 | 12 | PCLNR 1616H12 | 16 | 20 | 16 | 100 | 26 |
| 310000.0200 | 12 | PCLNR 2020K12 | 20 | 25 | 20 | 125 | 28 |
| 310000.0300 | 12 | PCLNR 2525M12 | 25 | 32 | 25 | 150 | 28 |
| 310000.0400 | 16 | PCLNR 3232P16 | 32 | 40 | 32 | 170 | 34 |
| 310000.0500 | 19 | PCLNR 3232P19 | 32 | 40 | 32 | 170 | 42 |
Angle of entry 95°, lever clamping system, angle of cut -6,5°, inclination angle -6.5°
Corresponding inserts:
310600 Indexable insert CNMG FUTURO
310610 Indexable insert CNGG FUTURO
310915 Indexable insert CBN FUTURO
316000 Indexable insert FUTURO Type CN. 0° negative
317000 Indexable insert FUTURO Type CN
| Mã đặt hàng | Turning plate | Code | b | f1 | h | l1 | l3 |
| mm | mm | mm | mm | mm | mm | ||
| 310000.0100 | 12 | PCLNR 1616H12 | 16 | 20 | 16 | 100 | 26 |
| 310000.0200 | 12 | PCLNR 2020K12 | 20 | 25 | 20 | 125 | 28 |
| 310000.0300 | 12 | PCLNR 2525M12 | 25 | 32 | 25 | 150 | 28 |
| 310000.0400 | 16 | PCLNR 3232P16 | 32 | 40 | 32 | 170 | 34 |
| 310000.0500 | 19 | PCLNR 3232P19 | 32 | 40 | 32 | 170 | 42 |
Angle of entry 95°, lever clamping system, angle of cut -6,5°, inclination angle -6.5°
Corresponding inserts:
310600 Indexable insert CNMG FUTURO
310610 Indexable insert CNGG FUTURO
310915 Indexable insert CBN FUTURO
316000 Indexable insert FUTURO Type CN. 0° negative
317000 Indexable insert FUTURO Type CN
