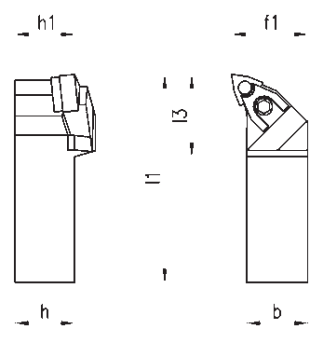

| Mã đặt hàng | Turning plate | Code | b | f1 | h | h1 | l1 | l3 |
| mm | mm | mm | mm | mm | mm | mm | ||
| 310150.0100 | 06 | MWLNR 2020K06 | 20 | 25 | 20 | 20 | 125 | 25 |
| 310150.0200 | 06 | MWLNR 2525M06 | 25 | 32 | 25 | 25 | 150 | 25 |
| 310150.0300 | 08 | MWLNR 2020K08-K | 20 | 25 | 20 | 20 | 125 | 34 |
| 310150.0400 | 08 | MWLNR 2525M08-K | 25 | 32 | 25 | 25 | 150 | 34 |
| 310150.0500 | 08 | MWLNR 3232P08-K | 32 | 40 | 32 | 32 | 170 | 34 |
310150 Tool holder MWLNR FUTURO
Angle of entry 95°, wedge clock clamping system, angle of cut -6.5°, angle of inclination -6.5°
Corresponding inserts:
310700 Indexable insert WNMG FUTURO
316250 Indexable insert FUTURO Type WN. 0° negative
317005 Indexable insert FUTURO Type WN..
| Mã đặt hàng | Turning plate | Code | b | f1 | h | h1 | l1 | l3 |
| mm | mm | mm | mm | mm | mm | mm | ||
| 310150.0100 | 06 | MWLNR 2020K06 | 20 | 25 | 20 | 20 | 125 | 25 |
| 310150.0200 | 06 | MWLNR 2525M06 | 25 | 32 | 25 | 25 | 150 | 25 |
| 310150.0300 | 08 | MWLNR 2020K08-K | 20 | 25 | 20 | 20 | 125 | 34 |
| 310150.0400 | 08 | MWLNR 2525M08-K | 25 | 32 | 25 | 25 | 150 | 34 |
| 310150.0500 | 08 | MWLNR 3232P08-K | 32 | 40 | 32 | 32 | 170 | 34 |
310150 Tool holder MWLNR FUTURO
Angle of entry 95°, wedge clock clamping system, angle of cut -6.5°, angle of inclination -6.5°
Corresponding inserts:
310700 Indexable insert WNMG FUTURO
316250 Indexable insert FUTURO Type WN. 0° negative
317005 Indexable insert FUTURO Type WN..
