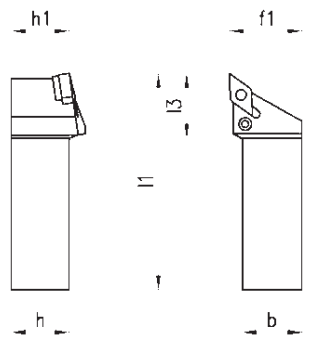

| Mã đặt hàng | Turning plate | Code | b | f1 | h | h1 | l1 | l3 |
| mm | mm | mm | mm | mm | mm | mm | ||
| 310050.0100 | 11 | PDJNR 1616H11 | 16 | 20 | 16 | 16 | 100 | 28 |
| 310050.0200 | 11 | PDJNR 2020K11 | 20 | 25 | 20 | 20 | 125 | 28 |
| 310050.0300 | 11 | PDJNR 2525M11 | 25 | 32 | 25 | 25 | 150 | 28 |
| 310050.0400 | 11 | PDJNR 3225P11 | 25 | 32 | 32 | 32 | 170 | 28 |
Angle of entry 93°, lever clamping system, angle of cut -6.25°, angle of inclination -6.75°
Corresponding inserts:
310640 Indexable insert DNMG FUTURO
310650 Indexable insert DNGG FUTURO
316050 Indexable insert FUTURO Type DN. 0° negative
317210 Indexable insert FUTURO Type DN..
| Mã đặt hàng | Turning plate | Code | b | f1 | h | h1 | l1 | l3 |
| mm | mm | mm | mm | mm | mm | mm | ||
| 310050.0100 | 11 | PDJNR 1616H11 | 16 | 20 | 16 | 16 | 100 | 28 |
| 310050.0200 | 11 | PDJNR 2020K11 | 20 | 25 | 20 | 20 | 125 | 28 |
| 310050.0300 | 11 | PDJNR 2525M11 | 25 | 32 | 25 | 25 | 150 | 28 |
| 310050.0400 | 11 | PDJNR 3225P11 | 25 | 32 | 32 | 32 | 170 | 28 |
Angle of entry 93°, lever clamping system, angle of cut -6.25°, angle of inclination -6.75°
Corresponding inserts:
310640 Indexable insert DNMG FUTURO
310650 Indexable insert DNGG FUTURO
316050 Indexable insert FUTURO Type DN. 0° negative
317210 Indexable insert FUTURO Type DN..
