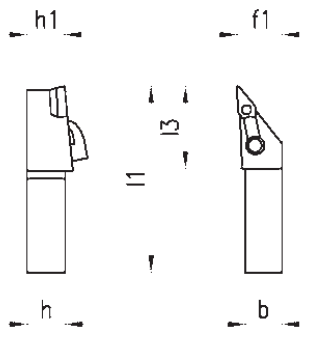

| Mã đặt hàng | Turning plate | Code | b | f1 | h | h1 | l1 | l3 |
| mm | mm | mm | mm | mm | mm | mm | ||
| 310170.0100 | 16 | MVJNR 2020K 16-K | 20 | 25 | 20 | 20 | 125 | 43 |
| 310170.0200 | 16 | MVJNR 2525M 16-K | 25 | 32 | 25 | 25 | 150 | 43 |
| 310170.0300 | 16 | MVJNR 3225P 16-K | 25 | 32 | 32 | 32 | 170 | 43 |

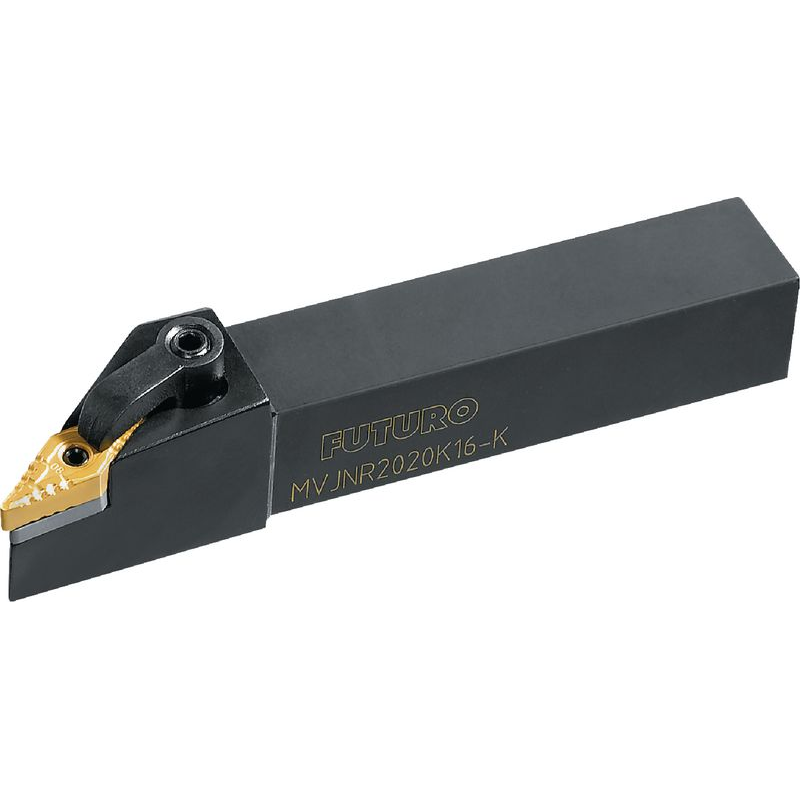

310170 Tool holder MVJNR FUTURO
Angle of entry 93°, wedge claw clamping system, angle of cut -6°, inclination angle -6°
Corresponding inserts:
310630 Indexable insert VNMG FUTURO
310635 Indexable insert VNGG FUTURO
316200 Indexable insert FUTURO Type VN. 0° negative
