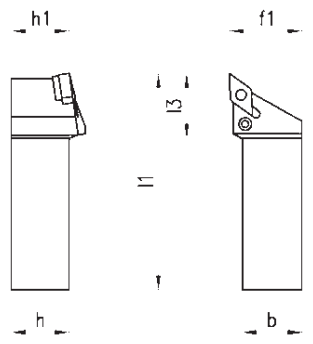

| Mã đặt hàng | Turning plate | Code | b | f1 | h | h1 | l1 | l3 |
| mm | mm | mm | mm | mm | mm | mm | ||
| 310070.0100 | 15 | MDJNR 2020K 15-K | 20 | 25 | 20 | 20 | 125 | 34 |
| 310070.0200 | 15 | MDJNR 2525M 15-K | 25 | 32 | 25 | 25 | 150 | 34 |
| 310070.0300 | 15 | MDJNR 3225P 15-K | 25 | 32 | 32 | 32 | 170 | 34 |

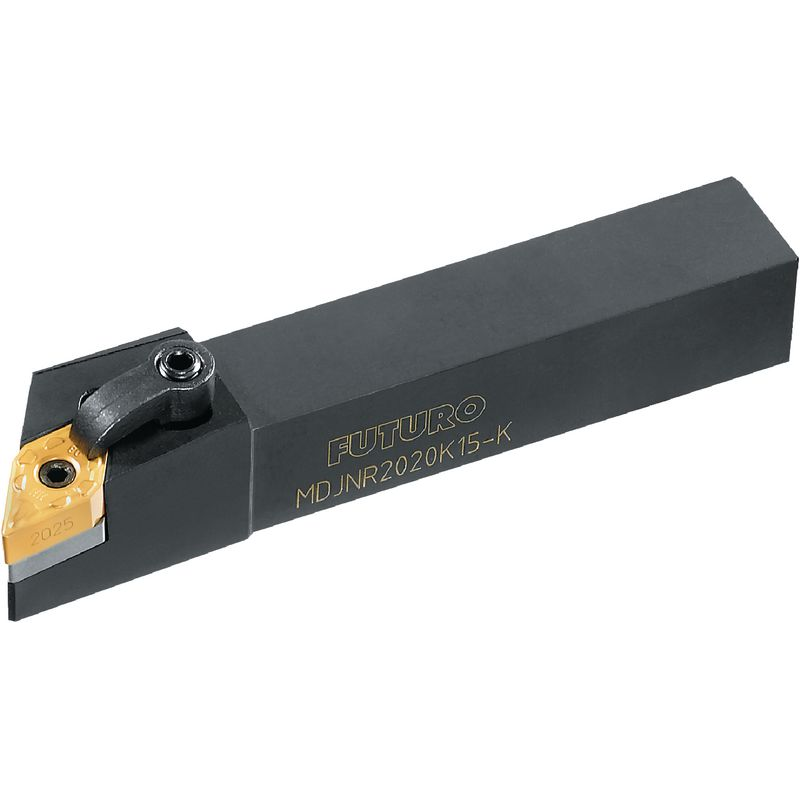

310070 Tool holder MDJNR FUTURO
Angle of entry 93°, wedge claw clamping system, angle of cut -6°, angle of inclination -7°
Corresponding inserts:
310640 Indexable insert DNMG FUTURO
316050 Indexable insert FUTURO Type DN. 0° negative
317210 Indexable insert FUTURO Type DN
