| Mã đặt hàng | Turning plate | Code | b | f1 | h | h1 | l1 | l3 |
| mm | mm | mm | mm | mm | mm | mm | ||
| 310100.0100 | 12 | PSSNR 2020K12 | 20 | 25 | 20 | 20 | 125 | 28 |
| 310100.0200 | 12 | PSSNR 2525M12 | 25 | 32 | 25 | 25 | 150 | 28 |
| 310100.0300 | 12 | PSSNR 3225P12 | 25 | 32 | 32 | 32 | 170 | 28 |

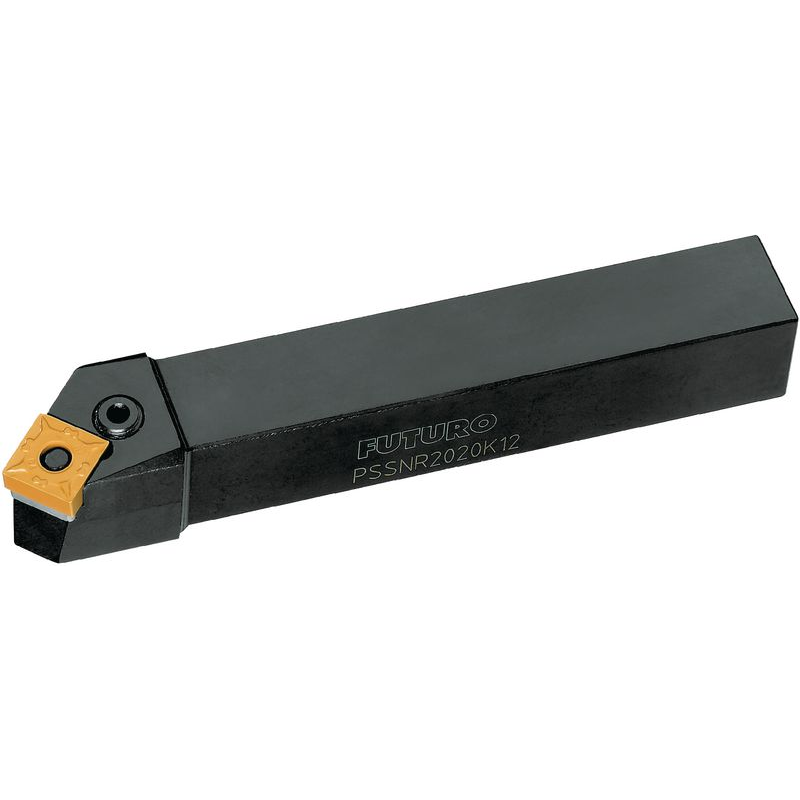

310100 Tool holder PSSNR FUTURO
Angle of entry 45°, lever clamping system, angle of cut -5.75°, angle of inclination -5.75°
Corresponding inserts:
310660 Indexable insert SNMG FUTURO
316100 Indexable insert FUTURO Type SN. 0° negative
