| Mã đặt hàng | Chiều dài | Số cặp | Profile |
| mm | mm | ||
| 143220.0050 | 80 | 20 | 2x5, 3x6, 4x7, 5x8, 6x9, 2x10, 3x11, 4x12, 5x13, 6x14, 2x15, 3x16, 4x17, 5x18, 6x19, 2x20, 3x21, 4x22, 5x23, 6x24 |
| 143220.0100 | 100 | 24 | 2x5, 3x6, 4x7, 5x8, 6x9, 2x10, 3x11, 4x12, 5x13, 6x14, 2x15, 3x16, 4x17, 5x18, 6x19, 2x20, 3x21, 4x22, 5x23, 6x24 |
| 143220.0200 | 125 | 24 | 8x11, 8x16, 8x21, 8x26, 8x31, 8x36, 10x13, 10x18, 10x23, 10x28, 10x33, 10x38, 12x15, 12x20, 12x25, 12x30, 12x35, 12x40, 14x17, 14x22, 14x27, 14x32, 14x37, 14x42 |
| 143220.0300 | 150 | 24 | 8x11, 8x16, 8x21, 8x26, 8x31, 8x36, 10x13, 10x18, 10x23, 10x28, 10x33, 10x38, 12x15, 12x20, 12x25, 12x30, 12x35, 12x40, 14x17, 14x22, 14x27, 14x32, 14x37, 14x42 |
| 143220.0400 | 20 | 24 | 8x11, 8x16, 8x21, 8x26, 8x31, 8x36, 10x13, 10x18, 10x23, 10x28, 10x33, 10x38, 12x15, 12x20, 12x25, 12x30, 12x35, 12x40, 14x17, 14x22, 14x27, 14x32, 14x37, 14x42 |

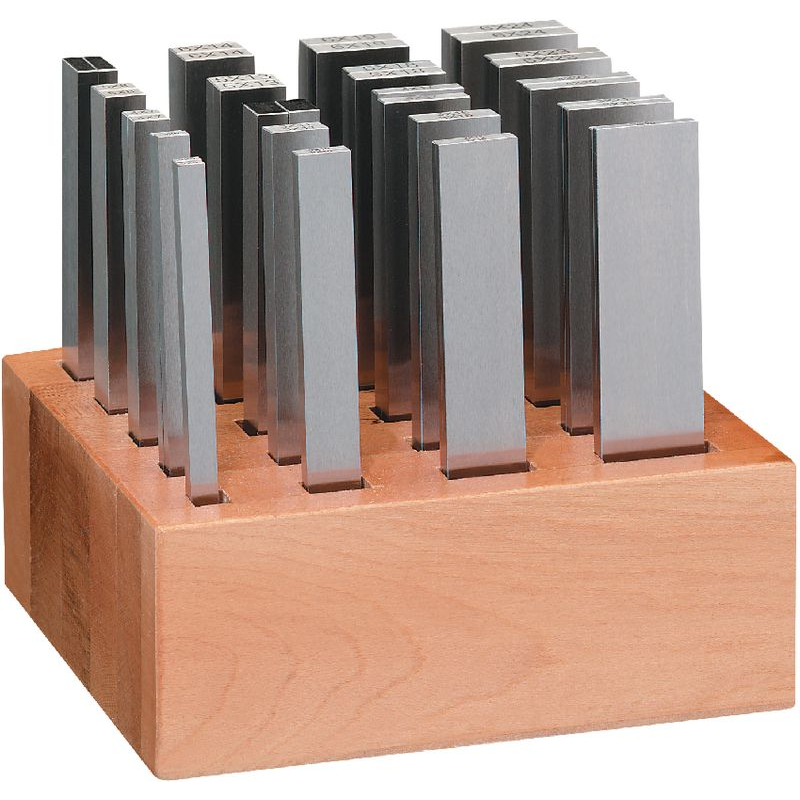

143220 Parallel base set FUTURO
(Milling blocks)– Hardened steel, for use as supports for workpieces during a wide range of
machining processes. The height tolerance of the parallel pair allows parallel clamping of the workpiece.
Features:
Hardened approx. 58-60HRC
Ground plane-parallel in pairs
Pair height tolerance 0.01 mm
Nominal dimensions to DIN ISO 2768/Part 1 medium
Nominal dimension printed on product face
Package contents:
Delivered in transport packaging including wooden base.
Wooden base 143240
Parallel base pair 143222
