| Mã đặt hàng | Cone | Dải kẹp | A | A1 | D | g |
| mm | mm | mm | mm | |||
| 331110.0100 | SK 40 | 0.5-16 | 90 | 103 | 57 | M16 |
DIN 69871, form AD/B, balanced for 25000 rpm.

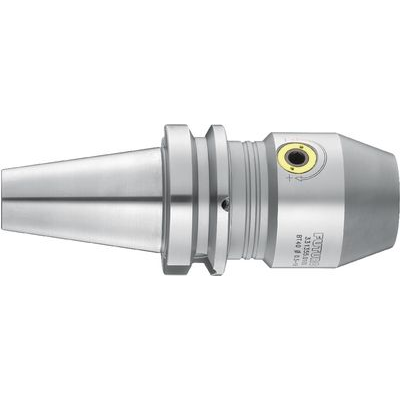

331110 NC precision drill chucks FUTURO
Concentricity ≤0.02 mm
Usage: tightening drilling tools with parallel shank.
Execution: Clamping security independent of rotational direction with high clamping force due to
worm gear. Suitable for internal coolant passage.
Package contents: withoutchuck key
