| Mã đặt hàng | Cone | d | A | l1 | D |
| mm | mm | mm | mm | ||
| 331320.0100 | BT40 | 16 | 40 | 17 | 38 |
| 331320.0200 | BT40 | 22 | 40 | 19 | 48 |
| 331320.0300 | BT40 | 27 | 40 | 21 | 58 |
| 331320.0400 | BT40 | 32 | 50 | 24 | 78 |
| 331320.0500 | BT40 | 40 | 50 | 27 | 88 |

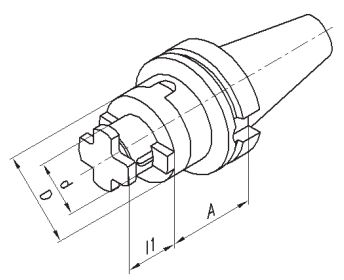

331320 Cross groove attachment cutter arbour FUTURO
MAS-BT (JIS-B 6339), Form AD/B, balanced for 15,000 rpm
DIN 6357, short version, with enhanced collar and internal cooling.
d=40 with 4 additional thread bores according to DIN 2079.
Application: For shell end mills and indexable-insert milling cutters.
Appropriate accessories:
339610 Cutter spindle key
Package contents: Includes cutter tightening screw and dog block, key not included.
| Mã đặt hàng | Cone | d | A | l1 | D |
| mm | mm | mm | mm | ||
| 331320.0100 | BT40 | 16 | 40 | 17 | 38 |
| 331320.0200 | BT40 | 22 | 40 | 19 | 48 |
| 331320.0300 | BT40 | 27 | 40 | 21 | 58 |
| 331320.0400 | BT40 | 32 | 50 | 24 | 78 |
| 331320.0500 | BT40 | 40 | 50 | 27 | 88 |
331320 Cross groove attachment cutter arbour FUTURO
MAS-BT (JIS-B 6339), Form AD/B, balanced for 15,000 rpm
DIN 6357, short version, with enhanced collar and internal cooling.
d=40 with 4 additional thread bores according to DIN 2079.
Application: For shell end mills and indexable-insert milling cutters.
Appropriate accessories:
339610 Cutter spindle key
Package contents: Includes cutter tightening screw and dog block, key not included.
