| Mã đặt hàng | Cone | Áo côn | A | D | Dải kẹp |
| mm | mm | mm | |||
| 331330.0100 | BT40 | ER16 | 63 | 32 | 0.5...10 |
| 331330.0200 | BT40 | ER16 | 100 | 32 | 0.5...10 |
| 331330.0300 | BT40 | ER16 | 160 | 32 | 0.5...10 |
| 331330.0400 | BT40 | ER16 | 200 | 32 | 0.5...10 |
| 331330.0500 | BT40 | ER25 | 63 | 42 | 0.5...16 |
| 331330.0600 | BT40 | ER25 | 100 | 42 | 0.5...16 |
| 331330.0700 | BT40 | ER25 | 160 | 42 | 0.5...16 |
| 331330.0800 | BT40 | ER25 | 200 | 42 | 0.5...16 |
| 331330.0900 | BT40 | ER32 | 70 | 50 | 1...20 |
| 331330.1000 | BT40 | ER32 | 100 | 50 | 1...20 |
| 331330.1100 | BT40 | ER32 | 160 | 50 | 1...20 |
| 331330.1200 | BT40 | ER32 | 200 | 50 | 1...20 |

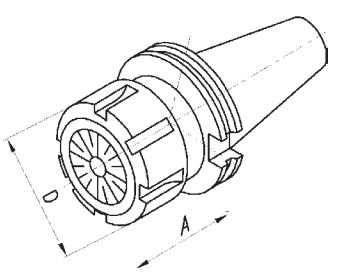

331330 Collet chuck FUTURO. MAS-BT (JIS-B 6339), Form AD/B, balanced for 15,000 rpm.
DIN 6499 ER
Application: Clamping of tools with cylindrical shank in the ER collet.
Appropriate accessories:
339000 Collet chuck REGO-FIX ER DIN 6499
339040 Collet chuck REGO-FIX ER-UP DIN 6499
339060 Assortment of collet chucks REGO-FIX ER DIN 6499
339100 Tap drill pincers REGO-FIX ER-GB DIN 6499
339120 Tap drill pincers PCM DIN 6499
339500 Chuck key
339705 Taper cleaner
Package contents: Includes clamping nut, does not include wrench
