| d1 | l1 | d2 | d3 | l2 | l3 | l4 | r1 | r2 |
| mm | mm | mm | mm | mm | mm | mm | mm | mm |
| 10 | 15 | 14 | 22 | 13 | 2 | 2 | 1 | 0.4 |
| 20 | 14 | 22 | 18 | 2 | 2 | 1 | 0.4 | |
| 12 | 15 | 18 | 25 | 12 | 3 | 2 | 1 | 0.4 |
| 20 | 18 | 25 | 17 | 3 | 2 | 1 | 0.4 | |
| 13 | 15 | 19 | 26 | 12 | 3 | 2 | 1 | 0.4 |
| 20 | 19 | 26 | 17 | 3 | 2 | 1 | 0.4 | |
| 14 | 15 | 20 | 27 | 12 | 3 | 2 | 1 | 0.4 |
| 20 | 20 | 27 | 17 | 3 | 2 | 1 | 0.4 | |
| 15 | 15 | 21 | 28 | 12 | 3 | 2 | 1 | 0.5 |
| 20 | 21 | 28 | 17 | 3 | 2 | 1 | 0.5 | |
| 25 | 21 | 28 | 22 | 3 | 2 | 1 | 0.5 | |
| 30 | 21 | 28 | 27 | 3 | 2 | 1 | 0.5 | |
| 16 | 15 | 22 | 29 | 12 | 3 | 2 | 1 | 0.5 |
| 20 | 22 | 29 | 17 | 3 | 2 | 1 | 0.5 | |
| 25 | 22 | 29 | 22 | 3 | 2 | 1 | 0.5 | |
| 30 | 22 | 29 | 27 | 3 | 2 | 1 | 0.5 | |
| 20 | 15 | 30 | 40 | 10 | 5 | 3 | 2 | 0.5 |
| 20 | 30 | 40 | 15 | 5 | 3 | 2 | 0.5 | |
| 25 | 30 | 40 | 20 | 5 | 3 | 2 | 0.5 | |
| 30 | 30 | 40 | 25 | 5 | 3 | 2 | 0.5 | |
| 40 | 30 | 40 | 35 | 5 | 3 | 2 | 0.5 | |
| 25 | 15 | 35 | 45 | 10 | 5 | 3 | 2 | 0.5 |
| 20 | 35 | 45 | 15 | 5 | 3 | 2 | 0.5 | |
| 25 | 35 | 45 | 20 | 5 | 3 | 2 | 0.5 | |
| 30 | 35 | 45 | 25 | 5 | 3 | 2 | 0.5 | |
| 40 | 35 | 45 | 35 | 5 | 3 | 2 | 0.5 | |
| 30 | 20 | 40 | 50 | 15 | 5 | 3 | 2 | 0.5 |
| 25 | 40 | 50 | 20 | 5 | 3 | 2 | 0.5 | |
| 30 | 40 | 50 | 25 | 5 | 3 | 2 | 0.5 | |
| 35 | 40 | 50 | 30 | 5 | 3 | 2 | 0.5 | |
| 40 | 40 | 50 | 35 | 5 | 3 | 2 | 0.5 | |
| 50 | 40 | 50 | 45 | 5 | 3 | 2 | 0.5 | |
| 31.5 | 20 | 40 | 50 | 15 | 5 | 3 | 2 | 0.6 |
| 35 | 40 | 50 | 30 | 5 | 3 | 2 | 0.6 | |
| 35 | 20 | 45 | 60 | 15 | 5 | 3 | 2 | 0.6 |
| 30 | 45 | 60 | 25 | 5 | 3 | 2 | 0.6 | |
| 40 | 45 | 60 | 35 | 5 | 3 | 2 | 0.6 | |
| 50 | 45 | 60 | 45 | 5 | 3 | 2 | 0.6 | |
| 40 | 20 | 50 | 65 | 15 | 5 | 3 | 2 | 0.6 |
| 30 | 50 | 65 | 25 | 5 | 3 | 2 | 0.6 | |
| 40 | 50 | 65 | 35 | 5 | 3 | 2 | 0.6 | |
| 50 | 50 | 65 | 45 | 5 | 3 | 2 | 0.6 | |
| 45 | 30 | 55 | 70 | 25 | 5 | 3 | 2 | 0.6 |
| 40 | 55 | 70 | 35 | 5 | 3 | 2 | 0.6 | |
| 50 | 55 | 70 | 45 | 5 | 3 | 2 | 0.6 | |
| 60 | 55 | 70 | 55 | 5 | 3 | 2 | 0.6 | |
| 50 | 30 | 60 | 75 | 25 | 5 | 3 | 2 | 0.6 |
| 40 | 60 | 75 | 35 | 5 | 3 | 2 | 0.6 | |
| 50 | 60 | 75 | 45 | 5 | 3 | 2 | 0.6 | |
| 60 | 60 | 75 | 55 | 5 | 3 | 2 | 0.6 | |
| 55 | 40 | 65 | 80 | 35 | 5 | 3 | 2 | 0.7 |
| 60 | 65 | 80 | 55 | 5 | 3 | 2 | 0.7 | |
| 60 | 40 | 75 | 90 | 32.5 | 7.5 | 4 | 3 | 0.7 |
| 50 | 75 | 90 | 42.5 | 7.5 | 4 | 3 | 0.7 | |
| 80 | 75 | 90 | 72.5 | 7.5 | 4 | 3 | 0.7 | |
| 63 | 67.5 | 75 | 85 | 60 | 7.5 | 4 | 3 | 0.7 |
| 70 | 50 | 85 | 105 | 42.5 | 7.5 | 4 | 3 | 0.7 |
| 80 | 85 | 105 | 72.5 | 7.5 | 4 | 3 | 0.7 | |
| 75 | 60 | 90 | 110 | 52.5 | 7.5 | 4 | 3 | 0.7 |
| 80 | 60 | 100 | 120 | 50 | 10 | 4 | 3 | 0.8 |
| 80 | 100 | 120 | 70 | 10 | 4 | 3 | 0.8 | |
| 100 | 100 | 120 | 90 | 10 | 4 | 3 | 0.8 | |
| 90 | 60 | 110 | 130 | 50 | 10 | 4 | 3 | 0.8 |
| 80 | 110 | 130 | 70 | 10 | 4 | 3 | 0.8 | |
| 100 | 80 | 120 | 150 | 70 | 10 | 4 | 3 | 0.8 |
| 100 | 120 | 150 | 90 | 10 | 4 | 3 | 0.8 | |
| 120 | 80 | 140 | 170 | 70 | 10 | 4 | 3 | 0.8 |
| 100 | 140 | 170 | 90 | 10 | 4 | 3 | 0.8 |
Bronze with non-liquid lubricant, low-maintenance. Fit for retainer bore: H7. Bushes can be used with radial or axial motion.

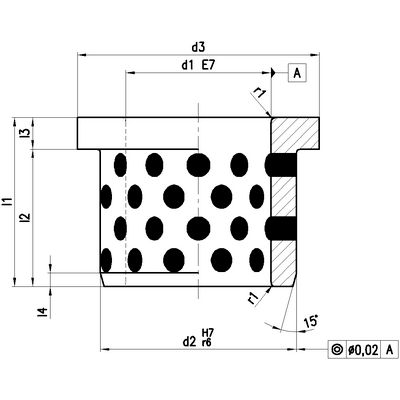

| d1 | l1 | d2 | d3 | l2 | l3 | l4 | r1 | r2 |
