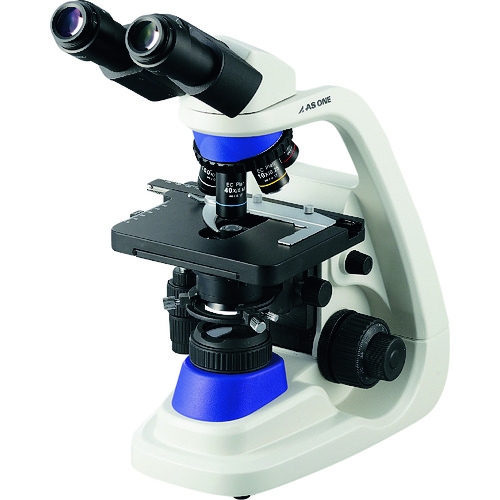

A durable, high-performance biological microscope for research and training
Newly developed EC Plan lens.
Using a high-resolution CCIS(R) optical system EC Plan achromatic objective lens, it is possible to obtain bright, clear, contrast images.
A stage with excellent chemical resistance and durability.
You can write while moving the stage with the left handle.
The surface is coated to withstand wear and tear from routine work.

Total magnification: 40 to 1000x
Model number MP38B

Xem thêm

Các thương hiệu bán chạy

TRUSCO

CKD

LOBSTER

HATAYA

HAMMER CASTER

FACOM

PISCO

STEINEL

BAHCO

YAMADA

FUTURO

STAHLWILLE

KUKKO

SMC

KOKEN

Thông tin sản phẩm

Total magnification: 40-1000×
Model number MP38B
Binocular. Interpupillary width adjustment range (mm): 55 to 75
Optical system: Infinity color correction (CCIS(R))
Focus adjustment: Single-axis coarse and fine movement method
XY stage: Travel distance/left and right 76mm, front and back 50mm , holds 2 slides
Lighting: 3W LED Koehler lighting. Lighting power supply: AC100-240V 50/60Hz
Condenser: Abbe type for Kohler illumination, NA1.25 (oil immersion)/0.90 (dry)
Dimensions (mm): Main unit/210×410×415mm, Stage/175 x140
Total magnification (times): 40-1000x
Objective lens (times): EC Plan achromatic lens 4x/NA0.1, 10x/NA0.25, S40x/NA0.65, S100 ×/NA1.25 (oil)
Eyepiece (magnification): 10x (field of view 20)
Tube type: Inclined angle 30°

AS ONE 3- 6692-01
