| Mã đặt hàng | 451180.0110 | 451180.0350 | |
| Kiểu | BM162 | DM9940 | |
| Dòng đo AC | 0.1...800 | 0.1...600 | |
| Dòng đo DC | 0.1...1000 | 0.1...600 | |
| Điện áp AC | 600V | 600V | |
| Điện áp DC | 600V | 600V | |
| Điện trở | 0.1...40MΩ | 0.1...40MΩ | |
| Điện dung | 50n...3000µF | ||
| Nhiệt độ đo | °C | - | - |
| Kích thước | mm | 227x78x40 | 176x60x41 |
451180 - Digital pincer multimeter
With digital display, overvoltage category CAT III 600V.
Type 162 AC/DC TRMS, with true effective measurement value, large clamp opening, data-hold, max-hold, continuity and diode test, resistance, capacitance measurement, automatic and manual range selection, backlit display, with case, measurement leads and batteries (2 x 155050 type LR03)
Type 6055 AC/DC, with temperature measurement, data-hold, peak-hold, diode test, resistance, with case, measurement leads, wire probe type K up to 250°C, not including battery (1 x 155050 type 6 LR61)

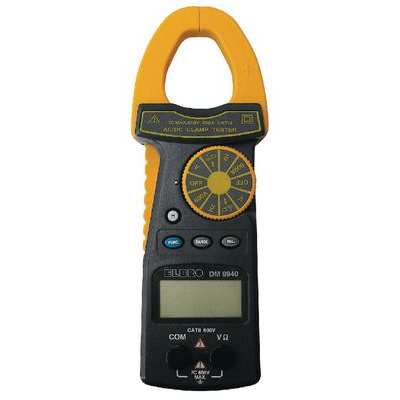

Type 9940 Mini AC/DC, data-hold, relative value measurement, continuity and diode test, resistance and frequency measurement, automatic range selection, with case and measurement leads, not including batteries (2 x 155050 type LR6) For accessories, see 451200. For measuring leads, see 451300 - 451370.
