Features
- It can be used in combination with sensors and stickers according to the purpose. (The sensor alone cannot detect leaks.)
- When water gets on the installed water leak sensor, it will sound a water leak alarm (warning lamp (for each line), buzzer, no-voltage contact signal output (all at once and for each line)).
- The detection sensitivity can be adjusted according to the sensor used and the liquid to be detected.
- It has a self-diagnosis function that checks for sensor disconnections and detection line systems. (WRNA, WRM8, WL-AD-2002-A)
- After a water leak alarm, the alarm will be cleared once the leak is fixed and the water on the sensor is removed.
- A compact type suitable for installation inside a collective panel.
Applications
- Places where water leaks are expected, such as kitchens, around air conditioners, under pipes, etc. (Buildings, factories, etc.)
- Compatible socket: Omron round socket 11 pin (PF113A)
- Compact Type
Specifications in detail
Power supply: AC100V or AC200V
Width x Depth x Height: 35 x 90 x 90mm
Applicable sensors: B-3P, S-1F, S-1FP, PS-1R, PS-2
Compatible sockets: Round socket (11 pins, model number: PF113A)
External output: Water leakage output (non-voltage c contact), sensor disconnection output (non-voltage c contact)
Power supply (V): AC100V or AC200V
Number of detection points: 1
Operating temperature range (℃): -15 to 45

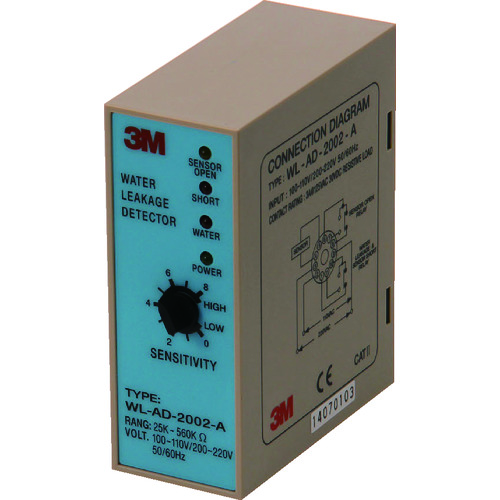

3M WL-AD-2002-A
