Features

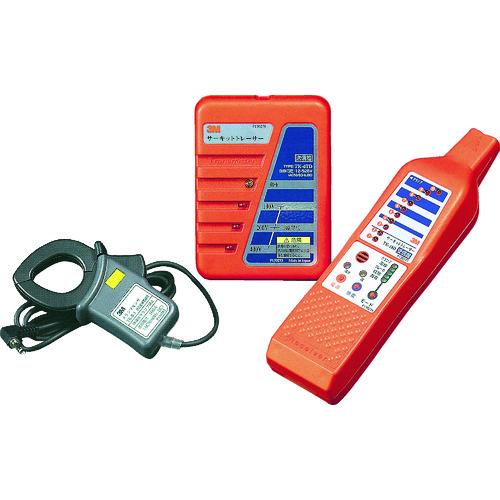

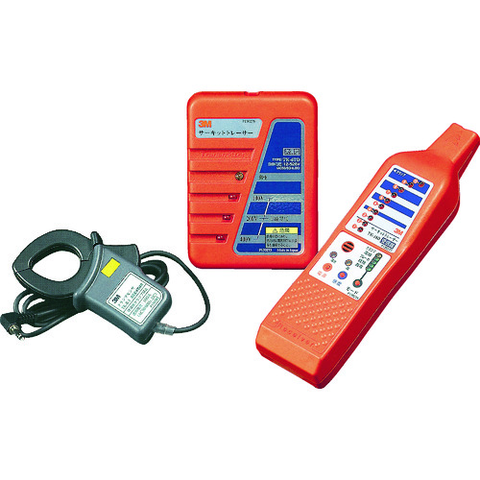

- This is a small, lightweight detection device that makes line detection easy and accurate.
- It is extremely effective for repairing electrical system failures, as well as expanding or relocating the system.
- It allows one person to search for circuits and breakers in distribution boards while the lines are live, without having to turn the power on and off.
- Equipped with a noise cut function to prevent false detection caused by noise.
Applications
- Inspection of electrical wiring in buildings, factories, etc.
- Circuit exploration of buried cables.
Specifications in detail
Operating temperature range: -10 to 40°C
Power supply (V): 1 stacked 9V dry battery (included) (receiver)
DC voltage (V): DC12 to 528
AC voltage (V): 12 to 528 (AC50/60Hz)
Power supply: 1 stacked 9V dry battery (included) (receiver)
Receiver width (mm): 51
Receiver depth (mm): 33
Receiver height (mm): 193
Transmitter width (mm): 82
Transmitter depth (mm): 30
Transmitter height (mm): 112
Clamp sensor width (mm): 60
Clamp sensor depth (mm): 26
Clamp sensor height (mm): 100
3M TK-6D
